Case Study: Suzuki Japan 3-Faced P6.67 Outdoor LED Display | Single Pillar Front & Rear Maintainable LED Screen

Completed Suzuki Japan outdoor LED screen project featuring a custom 3-faced P6.67 high-brightness LED display. Equipped with NationStar SMD3535 LEDs, airtight aluminum cabinet, single-pillar structure and front & rear dual maintenance design for stable outdoor operation in Japan.

Introduction

This blog presents our finished 3-faced outdoor LED display project for Suzuki Japan, a high-standard commercial outdoor LED screen solution customized for Japanese urban outdoor environments, strict weather resistance requirements, and long-term low-maintenance operation.

Different from conventional flat outdoor LED billboards, this project adopts a two-right-angle splicing 3-faced LED screen layout and a standalone single-pillar installation structure. With professional P6.67 outdoor LED specification, high-refresh brightness performance and full airtight protection technology, the display achieves ultra-stable all-weather outdoor playback, becoming a high-end brand display landmark for Suzuki in Japan.

View This P6.67 High Brightness Outdoor LED Display Product

1. Project Overview: Custom 3-Faced Single Pillar LED Screen for Japan Suzuki

To fit local Japanese outdoor installation standards, urban landscape policies and long-term operational needs, we designed an exclusive single pillar 3-faced outdoor LED display solution for Suzuki Japan.

Key Project Features

• Brand cooperation: Official Suzuki Japan outdoor display project

• Screen structure: 3-faced body spliced by two right-angle panels

• Installation type: Independent single-pillar vertical installation

• Operation advantage: Support full front and rear dual maintenance

• Application scenario: Outdoor commercial branding, roadside advertising, corporate image display

The right-angle seamless splicing ensures smooth screen lines, consistent vertical appearance, and premium visual texture, fully matching Japan’s rigorous outdoor landscape aesthetics and engineering standards. Compared with multi-pillar structures, the single-pillar design saves floor space, reduces wind resistance, and delivers safer and cleaner outdoor installation effects.

2. Core Product Specs: P6.67 High Refresh LED Display with NationStar SMD3535 Lamp

This Suzuki outdoor project adopts professional P6.67 outdoor LED display specification, which is the most cost-effective pixel pitch for medium and long-distance outdoor viewing. All display panels are configured with industrial-grade outdoor hardware to adapt to strong sunlight, heavy rain, high humidity and temperature changes in Japan.

2.1 High Brightness & High Refresh Performance

• Original NationStar SMD3535 outdoor LED beads

Ultra-high luminous efficiency, uniform color consistency, anti-attenuation and anti-aging performance. The screen maintains vivid color saturation even under direct strong sunlight without whitening or fading.

• High refresh rate driving technology

Effectively eliminate scanning lines and flicker issues. The display presents smooth video layers and clear text details, ensuring perfect shooting effects for mobile phones and cameras, suitable for high-standard commercial brand promotion playback.

2.2 Lightweight Aluminum Profile Cabinet

The entire screen body uses high-strength aluminum profile cabinets, featuring lightweight, high rigidity, deformation resistance and strong pressure resistance.

Advantages:

• Reduce overall load on the single pillar

• Improve overall wind resistance and structural stability

• Support fast disassembly and modular replacement

2.3 Full Airtight Sealing Craftsmanship

This outdoor LED screen adopts integrated airtight waterproof and dustproof technology. The fully sealed cabinet structure effectively isolates rainwater, dust, fog and insects from entering the internal circuit and power system.

It realizes excellent outdoor IP-grade protection, stable operation in rainy seasons and high-temperature environments, greatly reducing failure rate and extending the service life of outdoor LED equipment.

3. Structural Advantage: Single Pillar Installation + Front & Rear Dual Maintenance

One of the biggest highlights of this Suzuki Japan project is the humanized structural design, solving the common pain points of difficult maintenance and high after-sales cost of traditional outdoor LED screens.

3.1 Reinforced Single Pillar Structure

The customized vertical single-pillar base is reinforced for outdoor wind resistance, shock resistance and weather resistance. It complies with Japanese outdoor engineering safety standards, with small footprint, stable load-bearing and neat appearance, suitable for long-term outdoor vertical placement.

3.2 Front & Rear Bidirectional Maintenance Design

Most traditional outdoor LED screens only support single-sided rear maintenance.

This model is optimized with front and rear dual maintenance structure:

• Front side: Quick inspection and replacement of LED modules

• Rear side: Easy access to power supply, control system and line maintenance

Single-person operation is available without large hoisting equipment, greatly improving maintenance efficiency and reducing Suzuki’s long-term operation and maintenance costs.

4. Project Construction & Completion Effect (Construction & Finished Photos)

We implemented standardized overseas construction processes throughout the project, including on-site survey, scheme customization, single-pillar foundation reinforcement, screen body splicing, line layout, waterproof processing and system debugging.

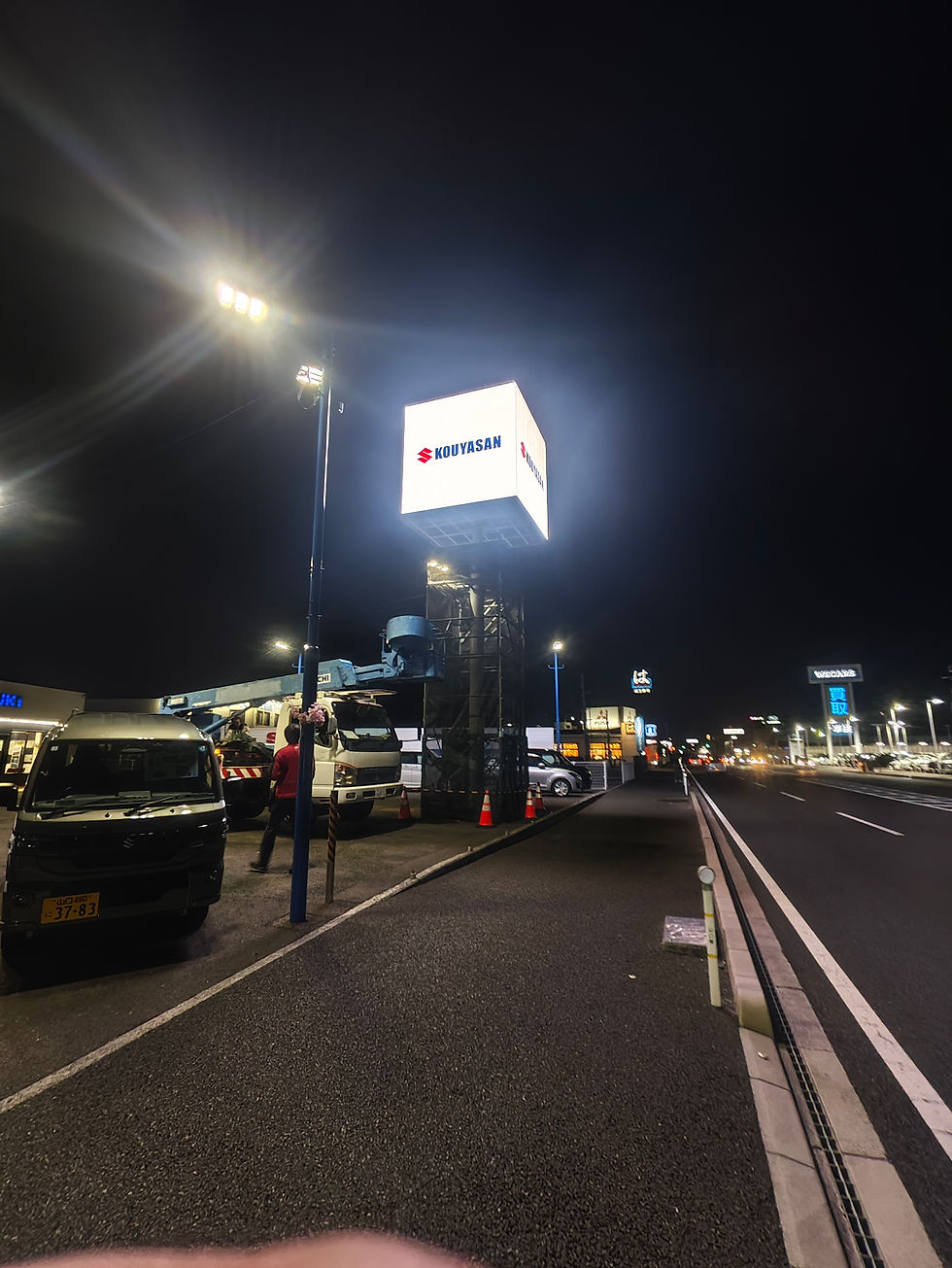

Construction Process Display

All construction details strictly control splicing flatness, verticality and waterproof sealing to avoid hidden dangers of outdoor long-term operation.

Finished On-site Effect

After completion, the 3-faced LED screen has neat and seamless splicing, uniform brightness without color difference, wide viewing angle without dark areas, and stable high-brightness display effect, perfectly meeting Suzuki’s outdoor brand display requirements.

5. Project Summary

The Suzuki Japan outdoor LED display project integrates P6.67 outdoor pixel pitch, NationStar SMD3535 high-brightness beads, high-refresh display technology, airtight waterproof aluminum cabinet, single-pillar stable structure, and front & rear dual maintenance design.

It is a typical high-standard Japanese outdoor LED screen case that balances beautiful appearance, all-weather stability and low maintenance cost, fully proving our professional customization capability for overseas high-end outdoor display projects.
